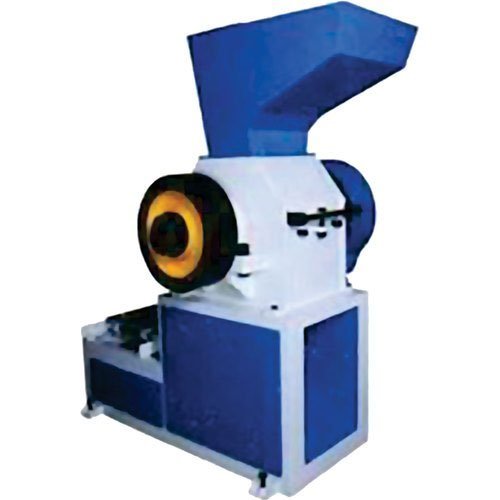

The available range of Scrap Grinder Machine can be availed to our customers in various designs and model. This is known by another name known as plastic shredder or waste crusher. The machine is fabricated using high grade materials that are procured from certified vendors available in the market. It is basically designed for milling purpose associated with declined plastic materials that is required to be grinded into small pieces. Using the unique steel metal, blades are chosen according to the materials that have to be grinded.
Specifications:
Blade size: 9”, 12”, 14”, 16”,18” and 20”
M. No. | Body | Rotary Blade | Height | Width | Length | Motor | Per Hour |
---|---|---|---|---|---|---|---|
9” | MS | 6 Rotary Blade 2 Fix | 3 Fit 5” | 1 Fit 5” | 2 Fit | 3 HP ( 1440RPM) | 35 To 45 |
12” | MS | 6 Rotary Blade 2 Fix | 3 Fit 8” | 2 Fit 2” | 2 Fit 6” | 5 HP ( 1440RPM) | 60 To 70 |
18” | MS | 6 Rotary Blade 2 Fix | 6 Fit | 3 Fit 2” | 5 Fit 5” | 15 HP ( 1440RPM) | 150 To 250 |
24” | MS | 6 Rotary Blade 4 Fix | 6 Fit 6” | 3 Fit 6” | 5 Fit | 20 HP ( 1440RPM) | 250 To 350 |
36” | MS | 12 Rotary Blade 4 Fix | 7 Fit | 4 Fit 6” | 6 Fit | 30 HP ( 1440RPM) | 350 To 500 |
