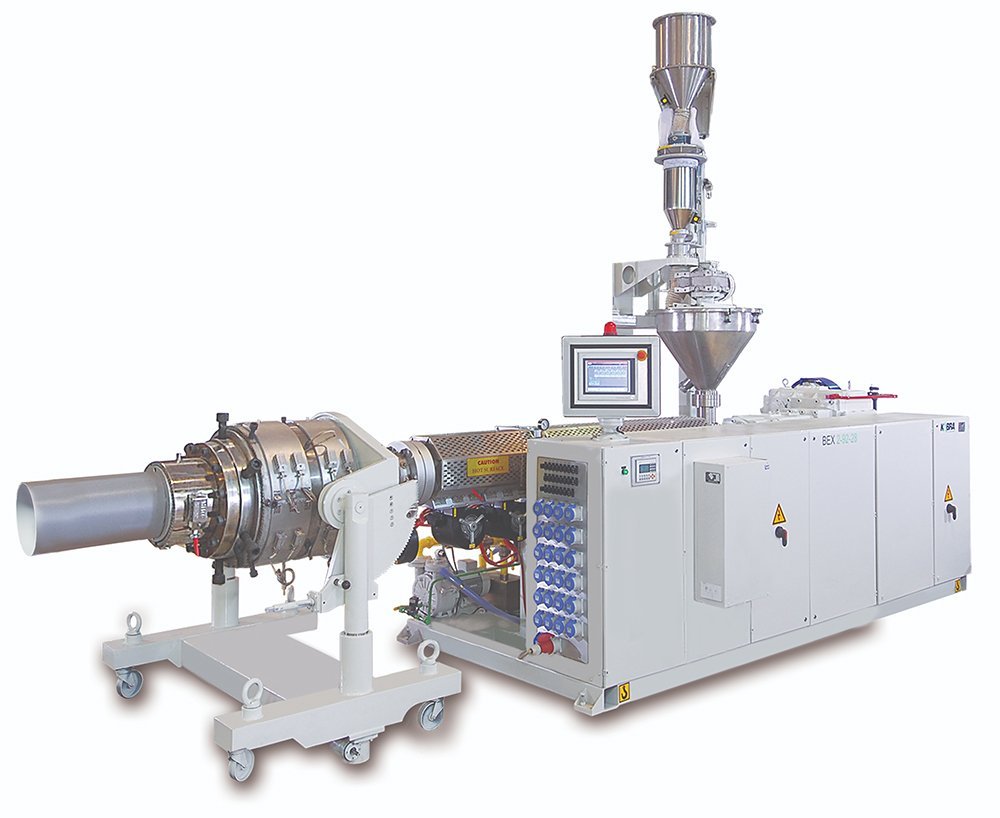

We manufactures complete extrusion lines with optimally matched components, sophisticated automation concepts and tailor-made solutions enabling processors to consistently produce high quality end products.Twin Screw Extruders are crucial for the efficient extrusion of quality PVC pipes. A wide range of products are made on these extruders. They are offered with Screw diameters 52 mm to 168 mm to give output ranges from 120 to 2,000 kgs/hr.
Application:
- Agriculture
- Plumbing
- Boring
- Column Pipe
Features:
- European Technology
- Special screw design – Increased material throughput at lower screw speeds
- Low shear stress on material- Gentle plasticizing- Great melt quality
- Superior end product quality
- Higher outputs at lower power consumption.
- Maintenance free self-regulating screw cooling system.
- Stronger thrust gear boxes.
- Synchronization of high rated AC drives.
- Enhanced protection and Panel Cooler for drive panels.
- Available with Optima and NX 32 Panel
Specifications:
Model | 2-52-18V | 2-52-25V | 2-65-18V | 2-65-22V | 2-68-28V | 2-72-28V |
---|---|---|---|---|---|---|
Extruder Drive (Kw-AC) | 11 | 15 | 22 | 30 | 37 | 45 |
L/D Ratio | 18:1 | 25:1 | 18:1 | 22:1 | 28:1 | 28:1 |
Output (Kg/Hour) | 100-120 | 150-170 | 180-200 | 200-250 | 300-350 | 350-390 |
Model | 2-90-22V | 2-90-25V | 2-92-28V | TwinEX 93R | 2-110-28V | TwinEX 114R | 2-135-28V | 2-168-28V |
---|---|---|---|---|---|---|---|---|
Extruder Drive (Kw-AC) | 55 | 55 | 75 | 90 | 90 | 110 | 160 | 200 |
L/d Ratio | 22:1 | 25:1 | 28:1 | 34 | 28:1 | 34 | 28:1 | 28:1 |
Out Put (Kgs/Hr) | 400-450 | 500-550 | 650-700 | 800-850 | 850-950 | 1110-1200 | 1300-1500 | 1600-2000 |
