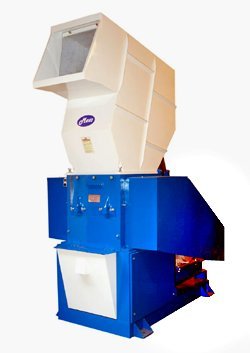

A wide range of superior grade Plastic Scarp Granulator-400 is offered to our esteemed clients. Available in varied grinding capacities, these are highly appreciated for their higher production efficiency. Our range of products is fabricated as per the international standards using premium quality raw material and components. Suitable for grinding various articles, these are highly demanded in various industries.
Features of the products are listed below:
- Low power consumption
- Sturdy construction
- Optimum performance
Technical Specifications:
|
Model |
MR-400/5 |
MCH-400 |
MSTG-400 |
|
Length of Blades |
400 mm |
400 mm |
125 mm-9, 400 mm-2 |
|
No. of Blades |
5 |
4 |
11 |
|
Throat Size |
400 x 400 mm |
400 x 400 mm |
400 x 400 mm |
|
Grinding Capacity |
135 Kg/Hr. |
120 Kg/Hr. |
150 Kg/Hr. |
|
Power Required |
10 HP (7.5 KW) |
10 HP (7.5 KW) |
10 HP (7.5 KW) |
|
Floor Space (L&W) in mm |
1525 x 1125 |
1525 x 1125 |
1525 x 1125 |
|
Suitable for Grinding |
Pipes up to 110 mm & Pet Bottles, Shoes, Film, Mono filament Yarns, H.I.P.S. Cups & Sheets |
Buckets up to 20 Ltr. & Blow Molded Containers up to 10 .Lt rs |
Solid Articles, Lumps & Preforms. |
