Features:

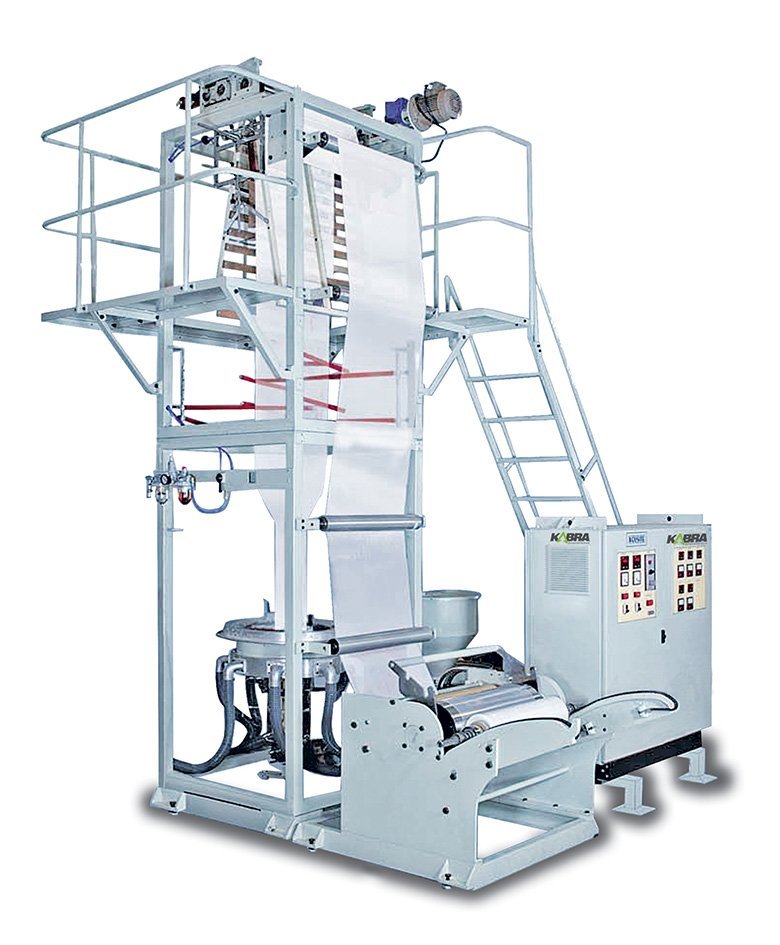

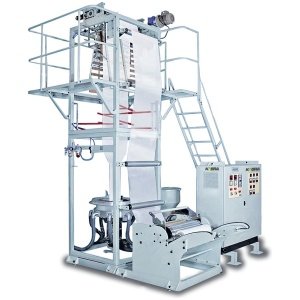

We offers rugged Compact Monolayer Blown Film Lines with best combination of technology and performance. These low investment, power efficient, high – speed plants, gives processors the competitive edge and quick return on their investment. Monolayer lines give higher specific output per screw RPM and is offered with grooved feed technology for forward movement of raw material and Candle type screen changer which ensuring wastage control and long production runs.
Specifications:
Model | KET – 33835 | KET – 33040 | KET – 33547 | KET – 31355 | KET – 32360 | KET – 37265 | KET – 35260 |
---|---|---|---|---|---|---|---|
Screw Dia (mm) | 35 X 26 D | 40 X 26D | 47 X 26D | 55 X 26D | 60 X 30D | 65 X 26D | 60X 30 D |
Main Drive AC (KW) | 9.2 | 15 | 22 | 22 | 55 | 37 | 55 |
Output (Kg/ Hr) | 35 | 60 | 80 – 85 | 90-95 | 130 – 150 | 110 | 130 – 150 |
Lay flat Width (Kg/hr) | 350 – 450 | 425 – 625 | 550 – 850 | 700 – 1000 | 1000 – 1600 | 950 – 1380 | 1600 – 2100 |
Thickness Range (Microns) | 10 – 50 | 10 -100 | 10 – 100 | 10-100 | 20 – 100 | 15 – 100 | 40 – 150 |
Die Size (mm) | 60 HM | 90HM | 115HM | 150HM | 330LLD | 300LLD | 450LLD |
Nip Roller Size (mm) | 510 | 710 | 925 | 1110 | 1800 | 1450 | 2350 |
Nip Drive AC (KW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
Max. Line Speed (Mt/ min) | 70 | 10 | 100 | 80 | 60 | 60 | 15 |
Surface Winder Width (mm) | 500 | 700 | 925 | 1100 | 1800 | 1450 | 2400 |
