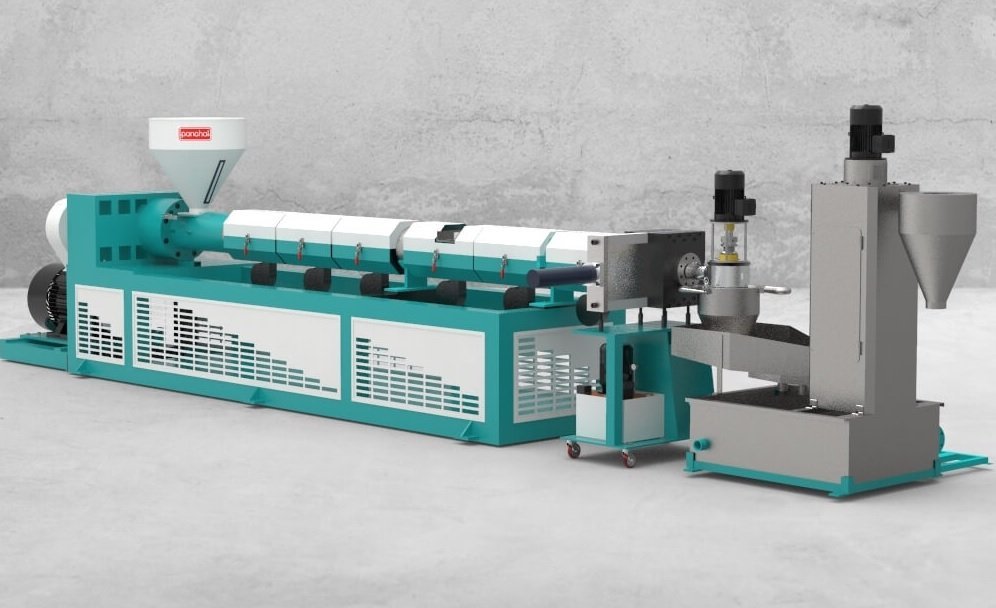

Die-face cutter WATER ring type system for Compounding and Master batch & Regranule the plastic material such as LD, HDPE, HM, ABS, PS, etc.
Feature:
Water Cooling Die Face pelletizing is used for PP/PE/ABS/SAN/PC etc. for high quality pellet
- Specially designed for easy and economical operations
- Possibility to change the size of granule
- No need of water for cooling
- Moisture free granules
- Perfect granules (virgin type)
- Less Space required
A screw design guarantees gentle melting and produces pellets with minimum degradation.
The minimal loss of physical characteristics allows one to use repelletized scrap at full value to virgin resin in many products.
A high degree of process stability minimizes the influence of the operating personnel on pellet quality.
Simple access to wear parts reduces scheduled downtime to a minimum.
Robust design, high-grade materials and top quality manufacturing in combination with the finest possible controls and proven electronics, guarantee a long service life.
Due to the excellent output rate in combination with low operating and energy costs the machine typically offers an extremely short payback period.
We are pleased to calculate both your recycling operational costs per kg [lbs] and the payback period.
Technology:
Die Face Water: The pelletizing systems of the DFW series are easy to operate. The pelletizing of PE, PP, PS, ABS and similar plastics is their field of application.
Dryer: The pellets are cooled by the water and transferred directly from the cutting chamber to the centrifuge due to the high flow rate. The granules are then dried after being separated from the water.
Control Panel: Control Panel is consisting of all safety related to machine with Single phase preventer, Over load preventer.
Ceramic Heating: Power saving ceramic heater and long life.
Extruder Screw: Screw made of EN41B nitride steel duly gas nitride.
Gearbox: Heavy duty helical gearbox with oil lubrication and water cooling for oil.
Technical Data:
| MODEL | PPM-75DFW | PPM-90DFW | PPM-100DFW | PPM-120DFW | PPM-140DFW |
|---|---|---|---|---|---|
| Screw Diameter (mm) | 75 | 90 | 100 | 120 | 140 |
| L/D Ratio | 26:1 | 26:1 | 26:1 | 26:1 | 26:1 |
| Heating Load (kW) | 18 | 22 | 26 | 30 | 38 |
| Main Motor (HP) | 25 | 30 | 40 | 50 | 60 |
| Screen Changer (HP) | 3 | 3 | 5 | 5 | 5 |
| Die Face Drive (HP) | 2 | 2 | 3 | 3 | 3 |
| Water Pump (HP) | 2 | 2 | 2 | 2 | 2 |
| Spin Dryer (HP) | 3 | 3 | 13 | 5 | 5 |
| Production (Kg/Hr.) | 70-100 | 100-150 | 110-180 | 150-250 | 200-350 |
| MODEL | PPM-75EV | PPM-90EV | PPM-100EV | PPM-120EV | PPM-150EV | PPM-160EV | PPM-180EV |
|---|---|---|---|---|---|---|---|
| HIGH PERFORMANCE EXTRUDER FOR HIGHER OUTPUT | |||||||
| Screw Diameter (mm) | 90 | 75 | 100 | 120 | 150 | 160 | 180 |
| Main Motor (kw) | 37 | 45/55 | 55/75 | 110/160 | 160/200 | 200/315 | 355/400 |
| L/D Ratio | 35:1 | 35:1 | 35:1 | 35:1 | 35:1 | 35:1 | 35:1 |
| Heating Load (kW) | 25 | 30 | 35 | 50 | 65 | 78 | 110 |
| Production (KG/HR.) | 100-150 | 180-250 | 220-300 | 300-450 | 300-450 | 750-1000 | 900-1200 |
