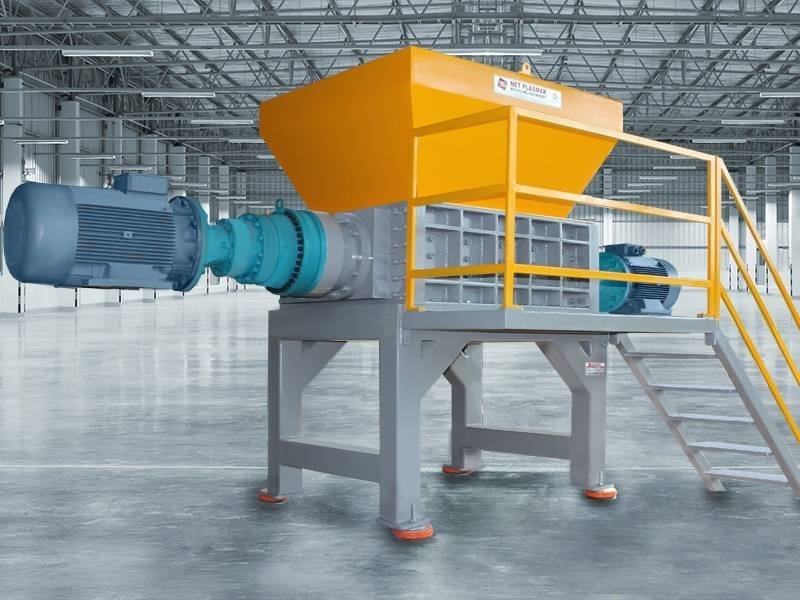

Double-Shaft Shredders are built to process many different kinds of waste streams in large volumes. Geometry of the shredder blades can be customized depending on material to be shredded. Two counter rotating shafts with special design blades and spacer combs placed between blades and attached to shredding chamber walls cut material into pieces with great force.
Specifications:
Model No. |
NP-SHD750 |
NP-SHD1000 |
NP-SHD1300 |
NP-SHD1500 |
Length of Rotor (mm) |
750 |
1000 |
1300 |
1500 |
Motor power (kW) |
2×22 |
2×37 |
2×55 |
2×75 |
Weight (kg) |
7200 |
9500 |
11200 |
14200 |
Dimensions LxWxH (mm.) |
3500x1690x1340 |
3900x1900x1500 |
4350x2100x1650 |
4750x2300x2000 |
