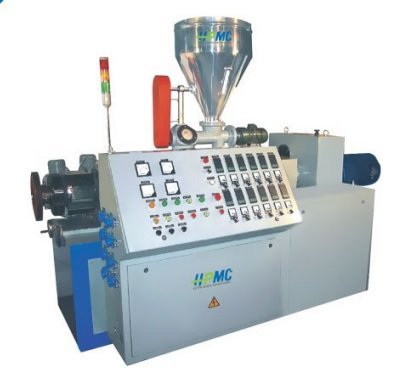

HPMC Conical Twin Screw Extruder for PVC compounding available in model numbers HPMC 51/105, HPMC 65/132 and HPMC 80/156 equipped with Conical Twin Screw Extruder provides an ideal atmosphere for polymer blending, filling modification, engineering polymer and glass fiber reinforcement and other compounding usages and specifications.
Equipped with compounding and extrusion technologies, the HPMC-Conical Twin Screw Extruder machines are designed for complete plants for the processing of PVC, from the stages of raw material feeding and dry blend production in the environment of heat-cooling mixture of pellets.
Applications:
-
Drain-waste-vent (DWV)
- Polyvinyl chloride is the third most widely produced plastic.PVC is widely used in construction because it is cheap, durable, and easy to assemble. PVC production is expected to exceed 40 million tons by 2016. Properties The properties for PVC are usually categorized based on rigid and flexible PVCs.
- Drain-waste-vent (DWV)
- Sewers
- Water mains
- Water service lines
- Irrigation
- Conduit
- Various industrial installations
- Technical Specifications:
Machine Models Max Plasticizing Capacity (Kg/Hr) Max Output (Kg/Hr) Main Drive Kw Heating Eating Barrel (Kw) Heating Die(Kw) Screw Speed Variation Ariation (RPM) HPMC 51/105 180 150 18.5 – 3 1-37 HPMC 65/132 275 250 37 24 3 1-37 HPMC 80/156 400 350 55 35 4 1-37
