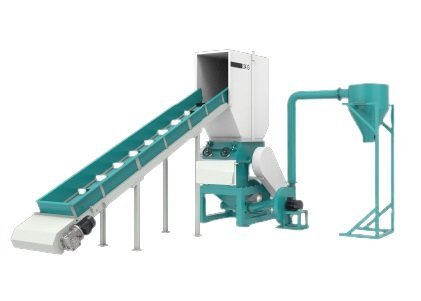

We provides an ideal choice of granulators for recycling plastic waste from blow molding applications. Waste and rejects of all sizes ranging from diverse small containers up to large plastic barrels and fuel tanks pose no problems. Models can be configured for either central or beside-the-press operation. Smaller waste are taken care of by the 12″ Series or 15″- Series, large family 18″ Series and 24″-Series machine chew rapidly through larger containers, while the heavy-duty 30″ Series and 40″ model are designed for really tough tasks. A number of infeed systems and hopper alternatives tailor the various models to your specific application.
Description:
- Compact Design
- Curved Backwall with more are for large volume parts
- Specially developed 3rd knives/blades -deflector wedge
- Strong Welded Steel construction
- D2 Steel Blades/Knives
- Heavy duty bearings & Housing out of cutting chamber
- Tilt Back Hopper with Auger (optional-hydraulic)
- Jig Fixture for Knives to adjusted outside of the machine
- Safety interlock
- Dropdown Screen Cardle on front side.
Technology:
Grinder Rotor: Provides full and easy access to the complete interior of the cutting chamber including the granule bin and the screen. This gives unmatched access to both rotating and fixed knives when serviced. And, when you change material and/or colour, you get complete control of the cleaning – Visually clean inspection
Front Screen Cardle: Provides full access to the interior of the cutter house. Cleaning and maintenance with full visibility and accessibility.
Manual Jack: Provides a secure and efficient opening of the granulator.
V Belt Drive: Provides powerful and energy-saving granulation at the same time.
Cross Body Opening: Provides full access to the interior of the cutter house. Cleaning and maintenance with full visibility and accessibility.
Jig Fixture: Rotor and fixed knives/blades are adjusted outside of the granulator by using jig fixture.
Technical Data:
| MODEL | PPM-40GB | PPM-30GB | PPM-24GB | PPM-18GB | PPM-15GB | PPM-12GB |
|---|---|---|---|---|---|---|
| Main Motor (HP) | 75 | 50 | 30 | 15 | 10 | 5 |
| Cutterhouse (Inches) | 40×36 | 30×26 | 24×22 | 18×8 | 15×15 | 12×12 |
| Production Kg./Hr. | 500-1000 | 350-400 | 200-250 | 100-150 | 75-100 | 50-75 |
| Screen hole (mm) | 8/10/12 | 8/10/12 | 8/10/12 | 8/10/12 | 8/10/12 | 8/10/12 |
| Rotor Type | Open/Staggerd | Open/Staggerd | Open/Staggerd | Open/Staggerd | Open | Open |
| Blower with cyclone* | 3HP | 3HP | 3HP | 2HP | 2HP | 1HP |
